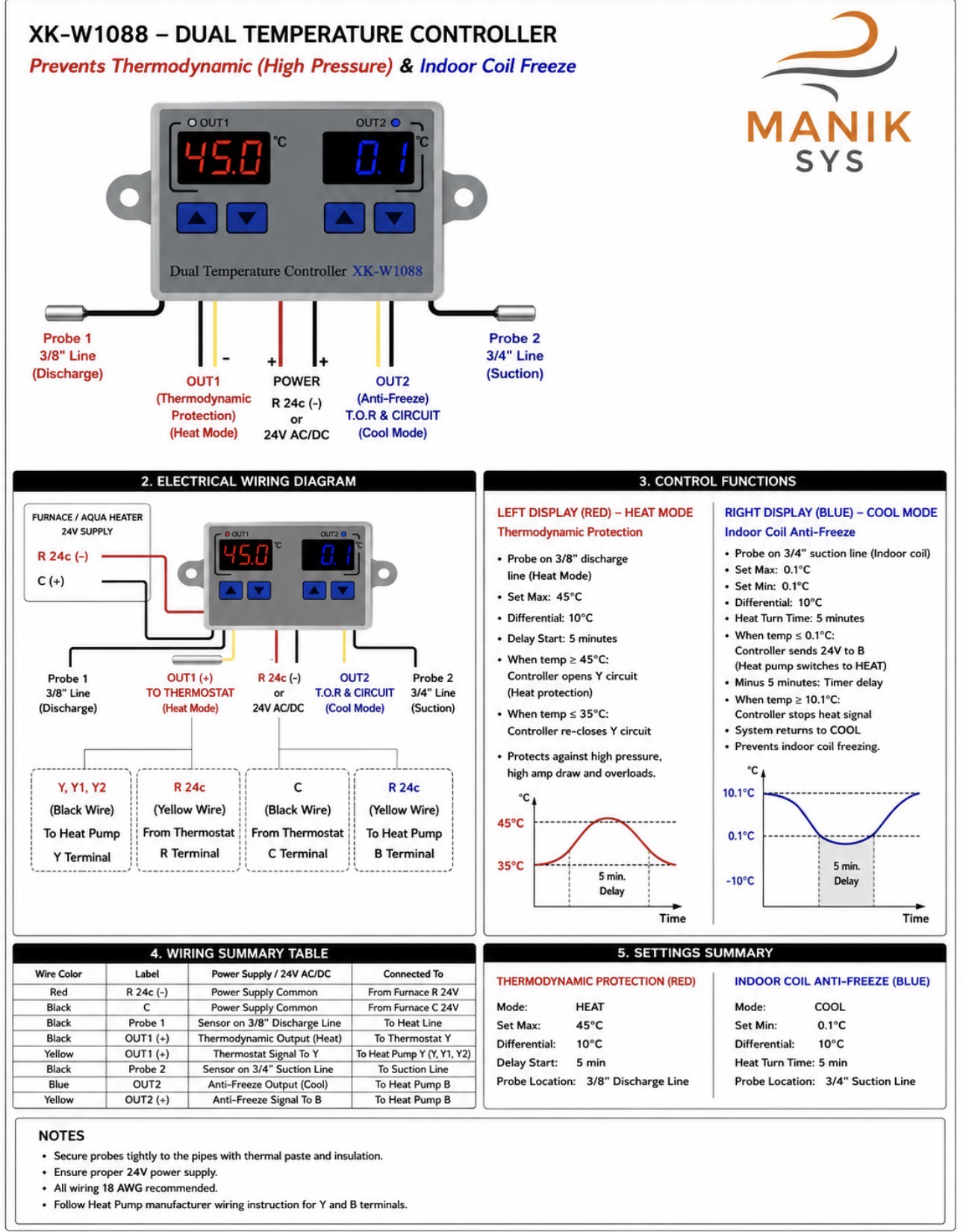

MANIKSTAT

Dual temperature controller

MANIKSTAT prevents thermodynamic overpressure in heating mode and indoor coil freeze-up in cooling mode. Two probes monitor the discharge line and the suction line; the controller acts on the heat pump's Y and B circuits to protect the equipment and hold performance through shoulder seasons.

Key points

• Thermodynamic protection in heating mode (red display)
• Indoor coil freeze protection in cooling mode (blue display)
• Protects against high pressure, high current draw and overloads
• Two probes: 3/8 in. discharge line and 3/4 in. suction line
• Outputs on the heat pump's Y and B circuits

Specifications

Power supply

24 V AC/DC (R 24c)

Probe 1 — heating

3/8 in. discharge line

Probe 2 — cooling

3/4 in. suction line

Thermodynamic protection

Max. setting 45 °C · 10 °C differential · 5 min startup delay

Freeze protection

Min. setting 0.1 °C · 10 °C differential · 5 min heating period

Recommended wiring

18 AWG
